INFORMATION ABOUT
WORKLITE® GPS FOAMKORE®

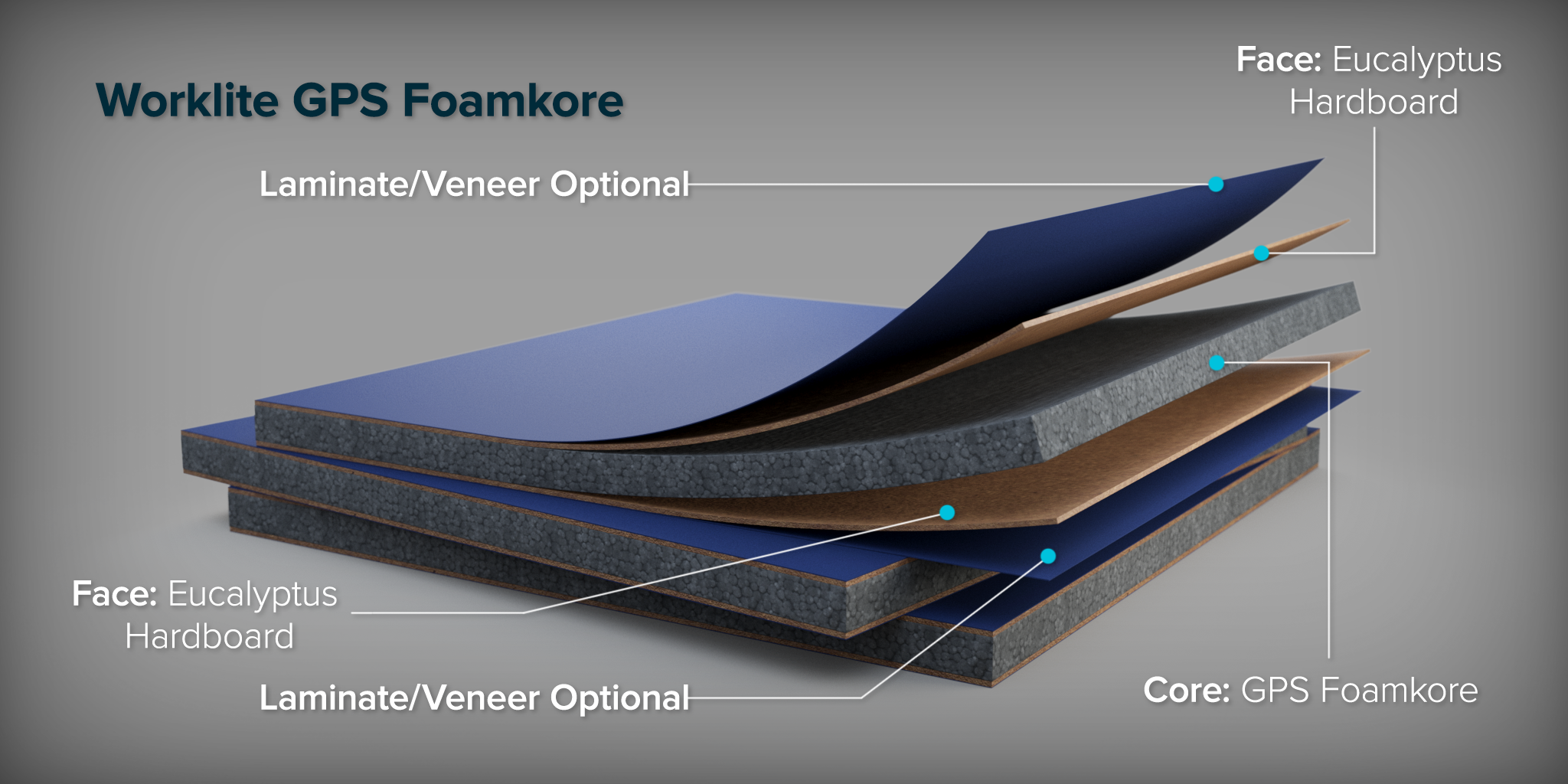

Worklite GPS Foamkore reduces material weight up to 80%* by capturing a lightweight core between two thin high-density faces, resulting in a strong lightweight panel. Core material is a graphite–enhanced polystyrene that provides compressive strength, moisture resistance, and Class A fire rating. Due to this polystyrene’s reflective property, the core has a stable R-Value at 5.0 per 1” thick. Acceptable decorative surfacing materials for lamination include high-pressure laminates, veneers, metals and many other semirigid materials as well as stain or paint.
*Compared to conventional panels made of plywood, particleboard and MDF

Face Materials
Eucalyptus Hardboard (Standard)
Fiberboard
3-Ply Italian Poplar Plywood
Core Materials
Graphite Polystyrene (Standard)
Fire Rated Option
Graphite Polystyrene
Flame Spread Rating: ASTM E 84: Class A (core only)
Flame Spread Rating: ASTM E 84: Class A (core only)
Forest Stewardship Council (FSC) Certified Option
Eucalyptus Hardboard Face
Assist in qualification of LEED credits MR7, MR4.1, MR4.2, EQ 4.4 and possibly MR 5.1 and MR 5.2 depending upon project location.
Assist in qualification of LEED credits MR7, MR4.1, MR4.2, EQ 4.4 and possibly MR 5.1 and MR 5.2 depending upon project location.
Nominal Thickness
1/2" | 5/8" | 3/4" - 3" | ||
---|---|---|---|---|
Graphite Polystyrene |
Panel Sizes
48" x 120" | 48" x 144" | 48" x 96" | 60" x 144" | ||
---|---|---|---|---|---|
Graphite Polystyrene |
Decorative Surfacing Materials
High Pressure Laminates
Veneers
Metals
Paint
Adhesive Option for Lamination
Contact Adhesive
Recommended when using a J-Roller
PVA Glue
Recommended when using a Press Machine
Attachment Methods
PVA glues or staples recommended
